Anschlussplan S-Serie

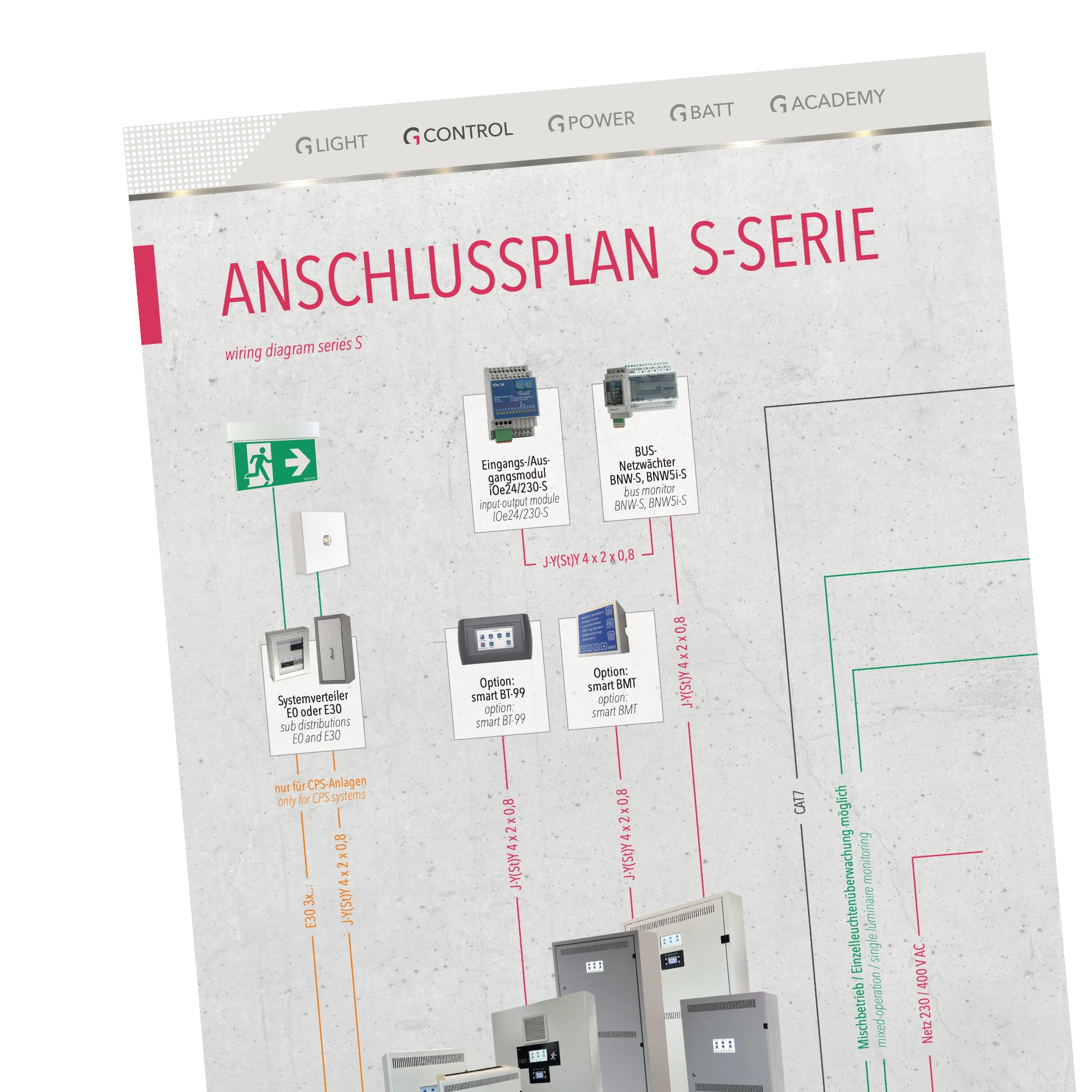

Wiring diagram for CPS and LPS emergency lighting systems with mixed operation and single luminaire monitoring. Illustration of system integration for central emergency power supply, BUS components and sub distribution systems.
BMT smart
Bus status panel for decentralized indication of emergency lighting system conditions with integrated visual and audible signaling. Designed as a remote display unit for safety lighting installations, enabling flexible installation and seamless integration into existing bus-based monitoring infrastructures.
BNW-S
Bus voltage monitoring unit for undervoltage supervision in emergency lighting power distribution systems with three-phase monitoring. Designed for use in safety lighting installations to detect voltage drops and phase failures through integration into bus-based monitoring systems. Each BNW-S is assigned a unique address using two address selectors, allowing address settings from 1 to 99 within the system.
BNW5i-S
3-phase bus voltage monitoring unit for undervoltage monitoring and additional signal acquisition in emergency lighting systems. Designed for use in electrical distribution systems with extended system integration through additional inputs for monitoring switching states. Each BNW-S within the system is assigned a unique address using two address selectors (addresses 1–99). The additional five inputs (I4–I8) can be used for light switch monitoring or circuit breaker monitoring.
Brandschutzgehäuse smart L/Li
Fire protection cabinet for CPS smart L and Li with E30 function integrity and 30 minutes fire resistance. Floor standing cabinet for protected integration of central emergency power supply systems in safety-relevant building areas.
Brandschutzgehäuse smart2 S/Si/M
Fire protection cabinet for LPS smart2 S, M and Si with E30 function integrity for emergency power supply systems. Wall-mounted cabinet with 30 minutes fire resistance duration for protected integration of safety-relevant supply technology.
CPS SMART L
Central battery system for the supply and monitoring of emergency luminaires with up to 28 circuits. Designed for use in emergency lighting installations with individual circuit switching and network connectivity through modern communication interfaces. Multiple S-Series systems can be interconnected via Ethernet (TCP/IP), requiring an IP status panel or PC software for network operation.
CPS SMART Li
The smart Li is a central power supply system (CPS) with lithium technology and support for up to 60 final circuits. Thanks to individual circuit switching, each emergency luminaire can be controlled separately during mains operation. The use of advanced lithium technology eliminates the need for battery room ventilation and extraction systems. Multiple S-Series systems can be networked via Ethernet (TCP/IP), requiring either an easyTOUCH control panel or PC software.
CPS smart XL
Central battery system for the supply and monitoring of emergency luminaires with up to 72 circuits. Designed for use in large-scale emergency lighting installations requiring individual luminaire switching, high system capacity, and centralized system integration. Multiple S-Series systems can be networked via Ethernet (TCP/IP) (IP control panel or PC software required).
CPS smart XLi
Central battery system with lithium technology for the supply and monitoring of emergency luminaires with up to 72 circuits. Designed for use in large-scale emergency lighting installations requiring individual luminaire switching, centralized control, and integration into networked systems. The use of advanced lithium technology eliminates the need for battery room ventilation and extraction systems. Multiple S-Series systems can be networked via Ethernet (TCP/IP), requiring either an easyTOUCH control panel or PC software.
E02 Überwachungsbaustein
The E02 monitoring module is designed for mixed-mode operation, individual luminaire monitoring, and the switching of luminaires on and off in combination with S-Series emergency lighting systems. During emergency lighting operation, DALI control lines are interrupted and maintained luminaires are switched on at the emergency lighting level configured on the DALI electronic control gear (ECG).
easyCONTROL Touch
The easyCONTROL Touch visualization system with a 10.1-inch touchscreen designed for 24/7 operation is used for programming and the centralized display of system status information from the easyCONTROL EBL / EBL PRO monitoring unit.
easyCONTROL View
easyCONTROL View visualization system for central monitoring and control of complex plant technologies. Floor plan-based visualization with real-time display of system and luminaire statuses for reliable operational management.
IOe230-S
Each of the 8 inputs can monitor a 230 V mains voltage signal. The IOe230-S also features 3 digital outputs with potential-free changeover contacts. The outputs are freely configurable. A unique address is assigned to each IOe230-S within the system using the two address selectors (addresses 1–99).
IOe24
Each of the 8 inputs can be activated via a potential-free control contact. The IOe24 also features 3 digital outputs with potential-free changeover contacts. The outputs are freely configurable within the CPS system. A unique address is assigned to each IOe module within the system using the two address selectors (addresses 1–59).
Kompakte Funktionseinheit
Functional unit for CPS smart XL for fire-protected accommodation of electrical safety systems. E30 version for upright installation on solid ceilings, fire-retardant walls or free-standing with rear panel.Suitable for the following system types: CPS smart XL, Sibe Profi
Logbook
Keeping a logbook for emergency lighting systems is mandatory. It must record regular inspections, tests, faults, and modifications. The system operator is responsible for maintaining the logbook and carrying out the required tests. Applicable standards: DIN VDE V 0108-100-1 DIN EN 50171 DIN EN 62034 DIN EN 1838 At minimum, the following information must be included in the logbook: Date of commissioning of the system Date and brief details of each maintenance activity and test, except for the daily test Date and brief details of any fault and the corrective action taken Date and brief details of any modification to the emergency lighting system
LPS smart2 M
The LPS smart2 M is a low-power supply system (LPS) with power limitation for supplying emergency luminaires within a fire compartment in accordance with DIN EN 50171. When installed in a fire-resistant enclosure, the LPS system can also be used across multiple fire compartments. Networking of multiple S-Series systems is possible via Ethernet (TCP/IP) as well as through the integrated Modbus interface.
LPS smart2 S
The LPS smart2 S is a low-power supply system (LPS) with power limitation for supplying emergency luminaires within a fire compartment in accordance with DIN EN 50171. When installed in a fire-resistant enclosure, the LPS system can also be used across multiple fire compartments. Networking of multiple S-Series systems is possible via Ethernet (TCP/IP) as well as through the integrated Modbus interface.
LPS smart2 Si
The LPS smart2 Si is a low-power supply system (LPS) with lithium technology and power limitation for supplying emergency luminaires within a fire compartment in accordance with DIN EN 50171. When installed in a fire-resistant enclosure, the LPS system can also be used across multiple fire compartments. Networking of multiple S-Series systems is possible via Ethernet (TCP/IP) as well as through the integrated Modbus interface.
LPS smart2 Si IP66
The LPS smart2 Si IP66 is a low-power supply system (LPS) with lithium technology and power limitation for supplying emergency luminaires within a fire compartment in accordance with DIN EN 50171. Thanks to its high protection rating, the LPS system is suitable for use in demanding environments. Networking of multiple S-Series systems is possible via Ethernet (TCP/IP) as well as through the integrated Modbus interface.
PC Software
(PC software with the same functionality as the IP Tableau) The software (LPS/CPS Manager) has been developed for the visualization of emergency lighting systems on a customer-side PC.- Integrated notification function (software runs in the background on the PC)- Pop-up window for system notifications and fault messages- Optional email notification in the event of system faults
Rangierverteiler
Distribution board for S-Series and P-Series systems with E30 to E90 circuit integrity for safety installations. Fire-resistant terminal enclosure with fuses and terminals for the secure distribution of riser circuits within buildings, ensuring reliable power distribution for emergency and safety systems.
smart BT-99

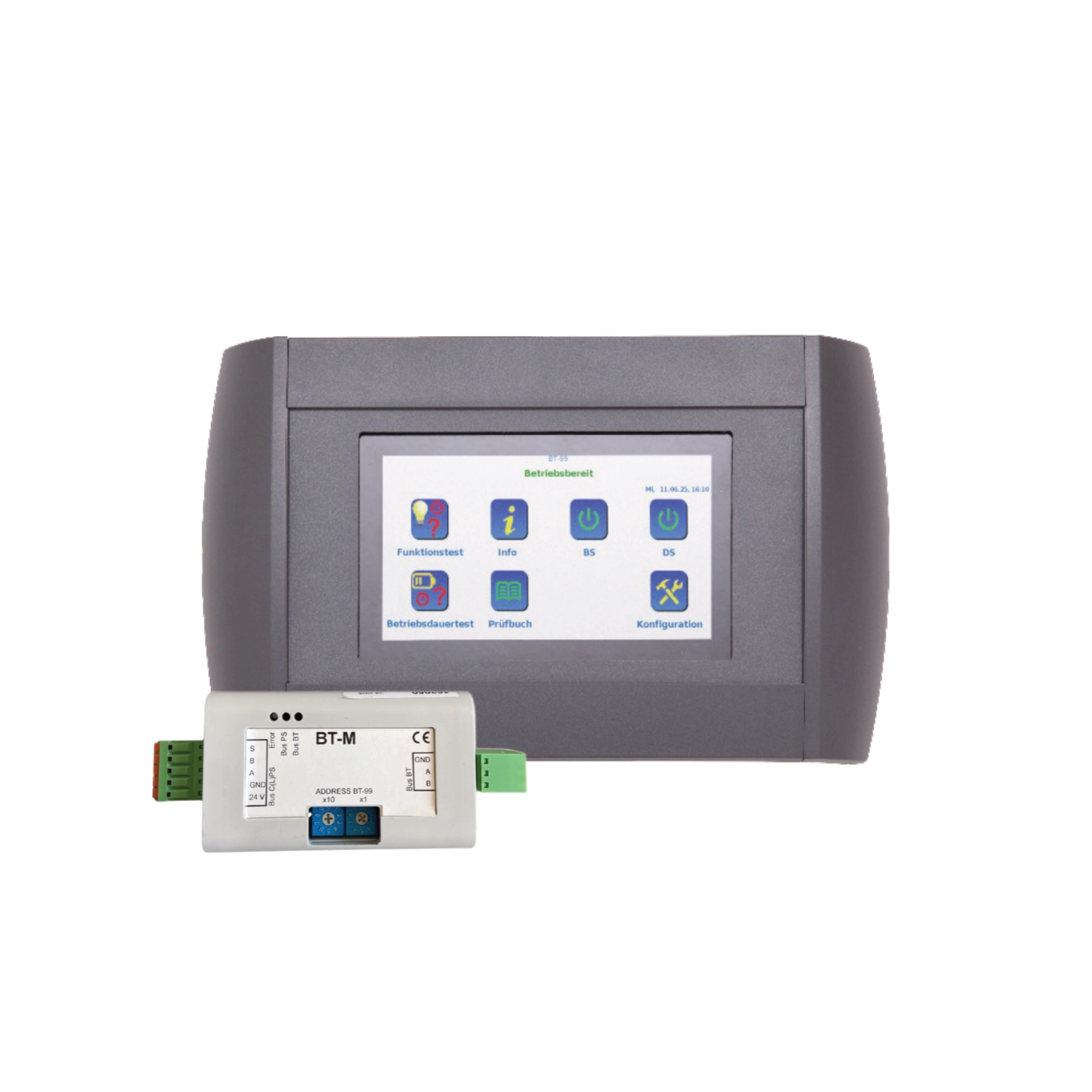

The smart BT-99 bus panel is used to network up to 99 systems of the S-Series, which can be centrally visualized, programmed and monitored via the 7" touch display. Visualization, programming and system monitoring are carried out through a central user interface for emergency lighting systems.
Systemverteiler E0 smart
E0 smart sub distribution for power distribution in CPS smart emergency lighting systems without functional integrity. Available in plastic and sheet steel versions with up to 60 outgoing circuits for centralized safety systems. For the S‑Series.
Systemverteiler E30 smart
The E30 smart distribution board provides 30 minutes of circuit integrity for power distribution in centralized emergency power systems. The fire-resistant enclosure is approved by the German Institute for Building Technology (DIBt) and is designed for CPS smart systems. Available with up to 48 outgoing circuits, it enables structured and reliable power distribution within buildings.
View Panel 15
View Panel 15 is a centralized visualization and monitoring terminal for emergency lighting systems with touchscreen operation. Designed for continuous 24/7 use, it provides a dedicated platform for displaying system conditions, monitoring connected installations and supporting efficient management of safety lighting systems.
View Panel 21
View Panel 21 is a centralized visualization and monitoring terminal for emergency lighting systems with touchscreen operation. Designed for continuous 24/7 use, it provides a dedicated platform for displaying system conditions, monitoring connected installations and supporting centralized management of safety lighting systems. The integrated easyCONTROL View software enables efficient supervision of emergency lighting networks in industrial and commercial environments.
