Why easyCONTROL LPS24?
One system.
Two technologies.
Next-level emergency lighting.
For the first time, GSYSTEMS combines an LPS system and a self-contained luminaire system in a single unit. The system combines the advantages of both technologies and offers maximum flexibility in planning, installation, and operation. At the heart of the systems are state-of-the-art lithium-ion batteries, which ensure high efficiency, a long service life, and minimal maintenance. Depending on the model, 2, 4, 6, or 8 final circuits are available, as well as 120 W or 400 W power variants.
The easyCONTROL LPS24 enables dynamic escape route guidance, which is visually supported by the new luminaire AVIOR 22. Escape routes can be adapted to the situation and clearly displayed — for maximum safety.
Optionally, individual self-contained luminaires can be flexibly networked with the LPS via cable, wireless, or as a hybrid solution. This makes the system suitable for new construction, existing buildings, and retrofits.
Practical example: gymnasium with locker rooms
Practical example: logistics warehouse and adjacent office building
catalogue GLIGHT | GCONTROL emergency luminaires and 24 V LPS systems
easyCONTROL LPS24
LPS 24-volt system with lithium technology, optionally with an integrated monitoring system for single-battery luminaires via cable, wireless, or hybrid
Dynamic display luminaire AVIOR 22
exclusively for the 24-volt system easyCONTROL LPS24
Recognition distance: 22 m
high flexibility thanks to freely selectable pictograms
custom, project-specific special pictograms also possible

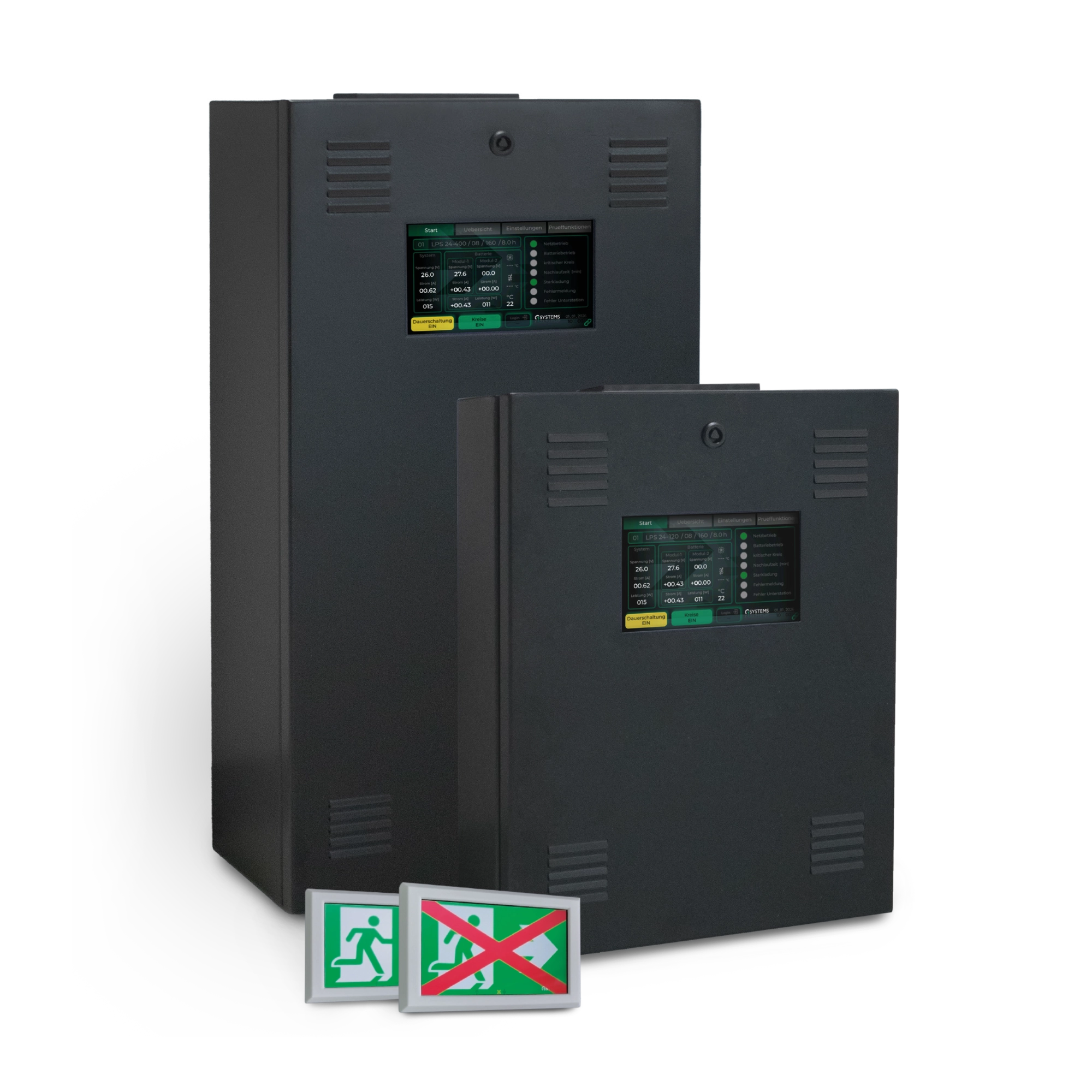

easyCONTROL LPS24 Si
The easyCONTROL LPS24 Si – with an output power of 120 W – is an intelligent 24V emergency power supply. It acts as a central monitoring and control unit for up to 160 modern central battery luminaires. Equipped with integrated individual luminaire monitoring, a long-life lithium battery (LiFePO4, DesignLife 15 years +) and convenient touch controls, the LPS24 Si offers an effi cient, low-maintenance and standards-compliant solution in accordance with DIN EN 60598-2-22 and EN 1838. The LPS24 Si is 100% developed and manufactured in Germany and comes with a 5-year warranty on the entire system, including the battery.
easyCONTROL LPS24 Mi
The easyCONTROL LPS24 Mi – with an output power of 400 W – is an intelligent 24V emergency power supply. It acts as a central monitoring and control unit for up to 160 modern central battery luminaires. Equipped with integrated individual luminaire monitoring, a long-life lithium battery (LiFePO4, DesignLife 15 years +) and convenient touch controls, the LPS24 Mi offers an effi cient, low-maintenance and standards-compliant solution in accordance with DIN EN 60598-2-22 and EN 1838. The LPS24 Mi is 100% developed and manufactured in Germany and comes with a 5-year warranty on the entire system, including the battery.
easyCONTROL LPS24 MEi
Central and self-contained battery monitoring in a single device! The easyCONTROL LPS24 MEi – with an output power of 400 W – is an intelligent 24V emergency power supply. It acts as a central monitoring and control unit for up to 160 modern central battery luminaires and 500 individual battery luminaires within a single system. Equipped with integrated individual luminaire monitoring, a long-life lithium battery (LiFePO4, DesignLife 15 years +) and convenient touch controls, the LPS24 MEi offers an effi cient, low-maintenance and standards-compliant solution in accordance with DIN EN 60598-2-22 and EN 1838. The LPS24 MEi is 100% developed and manufactured in Germany and comes with a 5-year warranty on the entire system, including the battery.
easyCONTROL LPS24 Tableau
The easyCONTROL LPS24 Tableau for surface installation is a control panel and is used for decentralised display (visual and audible) of the system status of emergency lighting devices.
easyCONTROL LPS24 BNW
Der Bus-Netzwächter easyCONTROL LPS24 BNW dient der Unterspannungsüberwachung in Verteilern der allgemeinen Stromversorgung und wurde speziell für Notbeleuchtungsanlagen entwickelt. Außerdem wird er zur Schalterabfrage genutzt, wodurch die Sicherheits- und Allgemeinbeleuchtung gemeinsam geschalten werden können. Mit der integrierten Terminierung werden keine Abschlusswiderstände benötigt.
easyCONTROL Touch
The easyCONTROL Touch visualization system with a 10.1-inch touchscreen designed for 24/7 operation is used for programming and the centralized display of system status information from the easyCONTROL EBL / EBL PRO monitoring unit and easyCONTROL LPS24 Si, Mi and MEi.
Brandschutzgehäuse easyCONTROL LPS24
fire protection cabinet with 30 minutes function integrity
Anschlussplan easyCONTROL LPS24
Wiring diagram for CPS and LPS emergency lighting systems with mixed operation and single luminaire monitoring. Illustration of system integration for central emergency power supply, BUS components and sub distribution systems.
Katalog LPS24 V Systeme
Dieser Katalog umfasst GLIGHT Notleuchten für LPS 24 V Systeme sowie die Zentralbatteriesysteme der easyCONTROL LPS24
